Carrying Roller (Indian Standard)

(0 review)

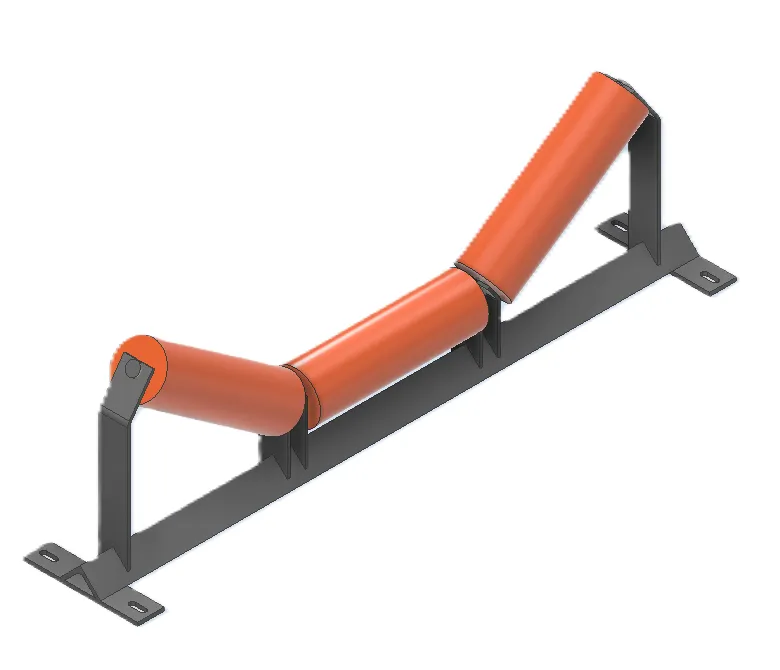

Carrying Idlers (Troughing Idlers) – IS 8598 Standard

IS 8598 carrying idlers are built for continuous-duty bulk material handling in mining, cement, steel, power plants, and ports. Optimized bearing selection, effective sealing against dust ingress, and controlled runout help achieve 3–5 years of service life in harsh environments—addressing the fact that over 60% of premature idler failures originate from seal and bearing contamination.


  • Shell Diameter (mm)
  • Shell Thickness (mm)
  • Roller Length (mm)
  • Shaft End Type
  • Bearing
  • Bearing Seal
Add to cart
Add to wishlist
Price
₹ 0.00 ₹ 0.00

Terms and Conditions
12-months warranty
Shipping: 15 Business Days
Contact Us

Specifications

Shell Diameter (mm) 63.5, 76.1, 88.9, 101.6, 108, 114.3, 127, 133, 139.7, 152.4, 168.3, 193.7, 219.1
Shell Thickness (mm) 3.65, 4.05, 4.5, 4.85, 5.4, 6.3
Roller Length (mm) 200, 250, 315, 380, 465, 530, 600, 750, 670, 800, 900

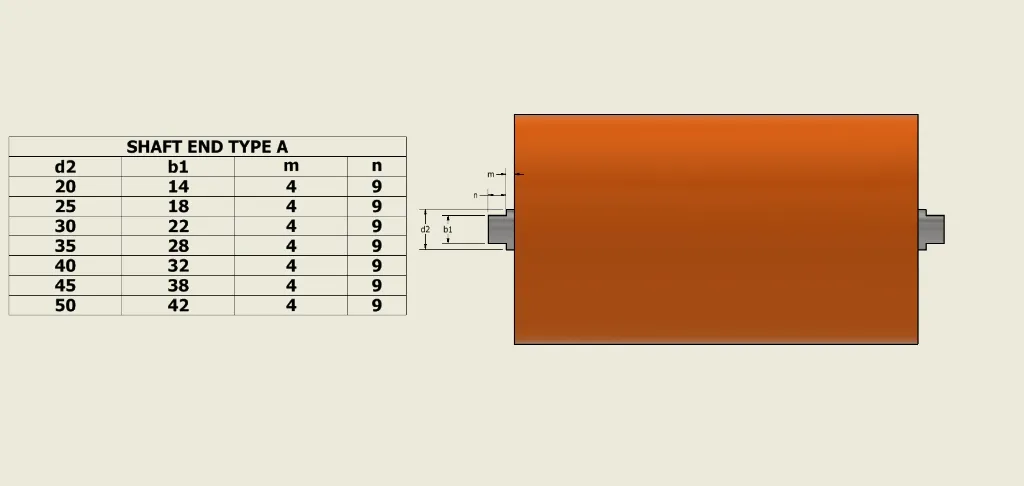

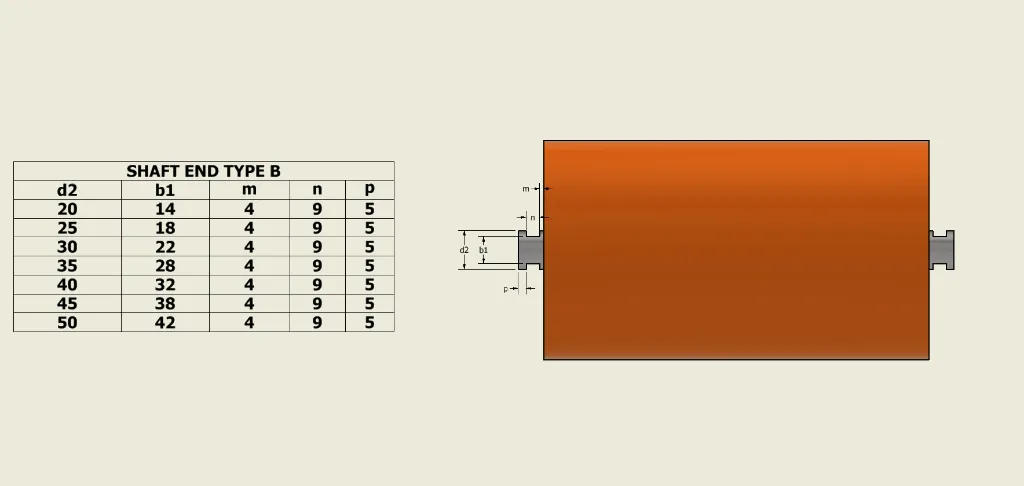

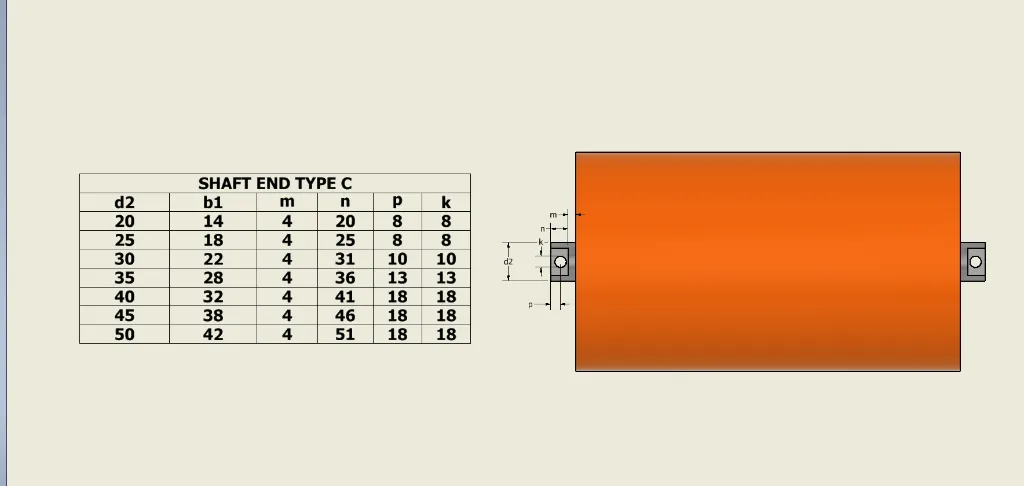

Shaft End Type A, B, C
Bearing 420204, 420205, 420206, 6204, 6304, 6205, 6305, 6206, 6306, 6207, 6307, 6208, 6308, 6209, 6309, 6210, 6310
Bearing Seal N/A, 2Z, 2RS
